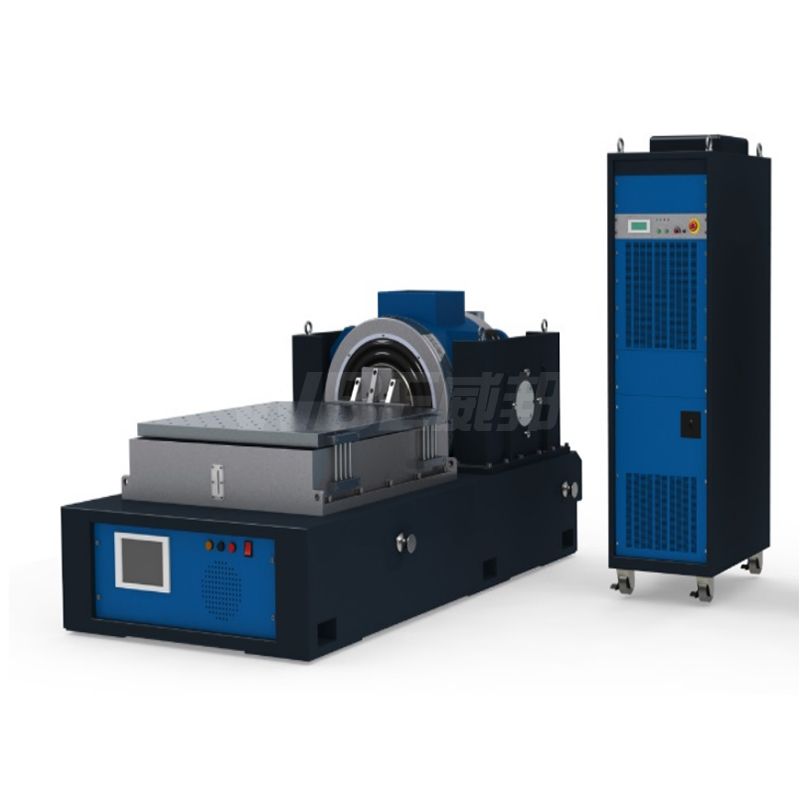

WBE-ZD series electromagnetic vibration test bench
Product description
Product use and applying scope:
The electric vibration test system can be used for all kinds of products to complete sinusoidal vibration test, random vibration test, and some classical shock (half sine wave, post-peak sawtooth wave, trapezoidal wave) test and shock response spectrum test, and the system can meet the requirements of relevant test indicators.
Elements of product selection:
1. The weight of the object to be tested (including the auxiliary fixture)
2. Dimensions of the product to be tested
3. Test conditions (acceleration, frequency, displacement, etc.)
Product features
01
Magnesium alloy structure, high stiffness, light weight, high first-order resonant frequency, large original platform size
02
10# cast steel magnetic housing, the platform adopts double magnetic circuit structure, compact and reasonable structure, strong magnetic field strength, small volume, few magnetic leakage.
03
Trunnion vibration isolation does not require special foundation switch power amplifier efficiency
04
The horizontal sliding platform adopts linear bearing guidance, strong anti-subversion ability, no oil source and no pollution, low noise
05
The digital vibration controller has complete functions, with sinusoidal vibration, random vibration, sine plus random, broadband plus narrow band, classical pulse shock and shock response spectrum test functions
06
Body flipping mechanism, simple structure, easy operation, accurate positioning
Technical specifications
|
Parameter
Modle |
WBE-ZD3KN |
WBE-ZD6KN |
WBE-ZD10KN |
WBE-ZD20KN |
WBE-ZD30KN |
WBE-ZD50KN |
WBE-ZD100KN |
|
Sinusoidal thrust Kgf |
300 |
600 |
1000 |
2200 |
3000 |
5000 |
10000 |
|
Random thrust Kgf |
300 |
600 |
1000 |
2200 |
3000 |
5000 |
10000 |
|
Impact thrust Kgf |
600 |
1200 |
2000 |
4400 |
6000 |
10000 |
20000 |
|
Maximum load Kg |
120 |
180 |
240 |
300 |
400 |
500 |
1000 |
|
Frequency range Hz |
5-4000 |
5-3500 |
5-3000 |
5-3000/2800 |
5-3000/2800 |
5-2800/2500 |
5-2800/2500 |
|
Maximum displacement mmP-P |
25.4 |
51 |
51/76 |
51/76 |
51/63/76/90 |
51/63/76/90 |
51/63/76/90 |
|
Maximum speed m/s |
2 |
2 |
2 |
2 |
2/1.8 |
2/1.8 |
2/1.8 |
|
Maximum acceleration g |
100 |
100 |
100/80 |
100/85 |
100/85 |
100/80 |
100/80 |
|
Active system equivalent mass kg |
3 |
6 |
10/13 |
22/25 |
30/35 |
50/60 |
50/60 |
|
Original table size mm |
150 |
230 |
235/240 |
335/340 |
340/440 |
445 |
445 |
|
Vertical body weight Kg |
600 |
860 |
1000 |
1700 |
2500 |
4500 |
4500 |
|
The output power of the amplifier is KVA |
4 |
6 |
12 |
20 |
30 |
50 |
50 |
|
Power amplifier weight Kg |
330 |
380 |
400 |
460 |
460 |
560 |
560 |
|
Vertical expansion platform mm |
400X400,500X500,600X600,700X700,800X800,1000X1000,1200X1200 ect.，以及φ400，φ500，φ600，φ800，φ1000d Ect., Customizable for Aluminum alloy, magnesium alloy material |
||||||
|
Horizontal slide table mm |
400X400,500X500,600X600,700X700,800X800,1000X1000,1200X1200Ect., Customizable for V-guideway, T-guideway, linear guideway, oil float slide platform for choice |
||||||
|
Vibration controller |
2-8 channels, sinusoidal vibration, broadband random vibration, classical shock, harmonic dwell, broadband plus narrowband random, broadband plus sinusoidal scan, vibration analysis, etc. |
||||||
|
Power source and Power Consumption (KVA) |
Three-phase five-wire AC 380V 4.5KVA |
Three-phase five-wireAC 380V 7KVA |
Three-phase five-wireAC 380V 12KVA |
Three-phase five-wireAC 380V 18KVA |
Three-phase five-wireAC 380V 20KVA |
Three-phase five-wireAC 380V 24KVA |
Three-phase five-wireAC 380V 32KVA |
|
Meet the criteria |
GB2423、JJG948、GJB150、GJB360 |
||||||
|
Working environment |
Temperature 0 ~ 40℃, humidity ≤80% (no condensation), air cooling |
||||||
